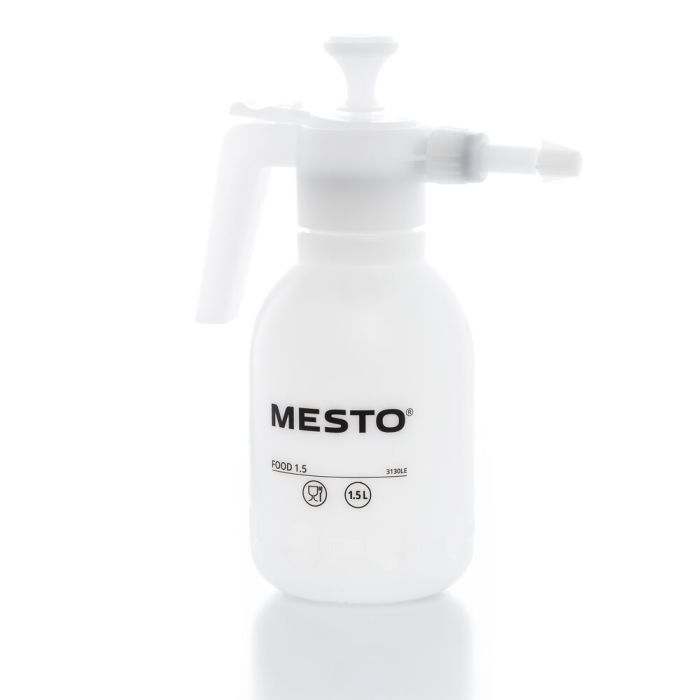

FOOD pressure sprayer
The pressure sprayer FOOD is designed for contact with foodstuff, e.g. in the catering sector or food industry.
Equipped with a regulating nozzle, the spray pattern can be adjusted from fine atomization to spot jet. This means that aqueous solutions can be applied evenly and in a targeted manner. The 1.5 liter tank is transparent and has an integrated level scale. Thanks to the large base area, the tank ensures a sturdy foothold.
A large filler opening (Ø 52 mm) enables comfortable filling of the tank.
Regulation EC 1935/2004
Regulation EC 1895/2005
Regulation EC 2023/2006
Regulation EC 10/2011
All the components of the pump are suitable for food contact. Test results are in compliance with European Framework Regulation (EU) 1935/2004 / Commission Regulation (EU) No 10/2011 and any subsequent amendments and additions for plastic components, to Ministerial Decree 21/03/1973 and any subsequent amendments and additions for rubber parts and to Ministerial Decree 06/08/2015 n.195 GU n.288 del 11/12/2015 for stainless steel springs.
| Product class | Comfort ** |
|---|---|
| Spraying agents | Laugen im Lebensmittelbereich, Water |
| EAN | 4000903000585 |
| Fill capacity | 1,5 l |
| Total contents | 2 l |
| Weight | 0,46 Kg |
| Article type | Pressure sprayers |
| Industry | Foodstuff |
| Applications | Wetting, Contact with foodstuff |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic transparent |
| Portability | hand portable |
| Nozzle type | Adjustable: Spot to full jet, Spray nozzle |
| Nozzle material | Plastic transparent |
| Nozzle material | Plastic transparent |
| Spray wand material | Plastic transparent |
| Shut-off valve material | Plastic transparent |
| Shut-off valve characteristics | ergonomic |
| Safety valve | ja |
| Pressure gauge | without |
| Compressed air filler valve | no |
| Scope of delivery general | tank, Spray wand, Pump, Nozzle(s), Instructions for use |
| Device equipment | Extra large filler opening for simple filling., Adjustable nozzle from spot jet to fine, even atomization., Embossed level scale to monitor the level at all times., Aus Materialien für den Lebensmittelkontakt. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
