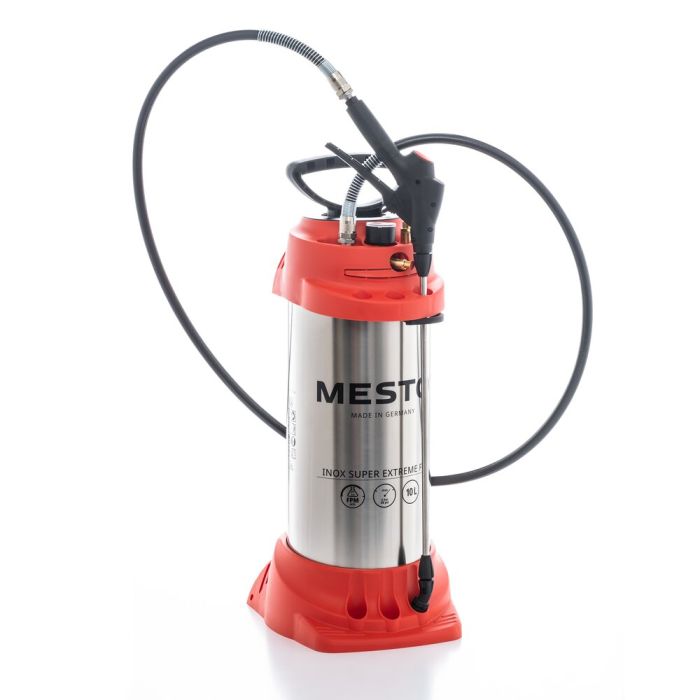

INOX SUPER EXTREME F10 compression sprayer
MESTO INOX SUPER EXTREME with a fill capacity of up to 10 l and an operating pressure of up to 6 bar perfectly combines the robustness of a stainless steel tank (outside) with the chemical resistance of a plastic tank (inside).
Thanks to its 2m chemical-resistant special hose, the ergonomic shut-off valve with integrated filter, as well as the 360 ° rotatable stainless steel spray wand with chemical-resistant flat jet nozzle 90-02, MESTO INOX SUPER EXTREME is the perfect helper for the professional application of various highly acidic or highly alkaline chemicals (depending on the device version). FPM seals provide excellent resistance to many cleaning agents. The installed funnel cover is designed to protect against dirt. The integrated compressed air filler valve (6222NB) is ideal for filling the device easily and conveniently with a compressor.
The device is equipped with a spare parts box containing the most important seals and an additional 1.1 mm stainless steel hollow cone nozzle. The large foot ring ensures a stable and sturdy foothold.
| Product class | Premium ***** |
|---|---|
| Düsenanwendung | for cleaning agents |
| Spraying agents | Oily agents, Acid detergents, Acid disinfectants |
| EAN | 4000903361662 |
| Fill capacity | 10 l |
| Total contents | 13 l |
| Weight | 5,78 Kg |
| Hose length | 200 cm |
| Article type | Compression sprayer |
| Industry | Cleaning, Industry, Motor and commercial vehicles, Pest control |
| Applications | Disinfecting, De-icing, Preserving, Cleaning, Controlling pests, Pre-wetting |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Tank material | Plastic |
| Portability | on the side, Back, Carrying straps padded |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution |
| Nozzle material | Plastic |
| Spray pattern | Hollow cone, Spray nozzle |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | with kink prevention coil |
| Shut-off valve characteristics | with filter, with coated spring, with safety interlock |
| Hose diameter | D10 |
| Safety valve | replaceable |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | ja |
| Scope of delivery general | tank, Pump, Hose, shut-off valve, Spray wand, Instructions for use, Nozzle(s), Carrying strap |
| additional equipment | Pump holder, Funnel cover, filled spare parts kit, additional nozzle, Spare parts compartment, Compressed air filler valve with handle |
| Device equipment | chemical-resistant special hose., Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Shut-off valve with specially coated spring for improved chemical resistance., Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Pump holder prevents soiling of the pump when filling., Stocked spare parts compartment with spare seals., The funnel cover prevents dirt contaminating the spraying agent and protects against contamination and clogging of the nozzle., Padded back carrying straps for carrying on the back., Stainless steel tank with plastic inner tank for improved chemical resistance., Particularly chemical-resistant equipment for very aggressive liquids., incl. rechargeable compressed air filler valve with quick snap coupling (size 7.2) and constant flow valve for connection to a compressor., Nozzle for particularly aggressive liquids., Zwei unterschiedliche Düsen passend für verschiedene Anwendungen. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
