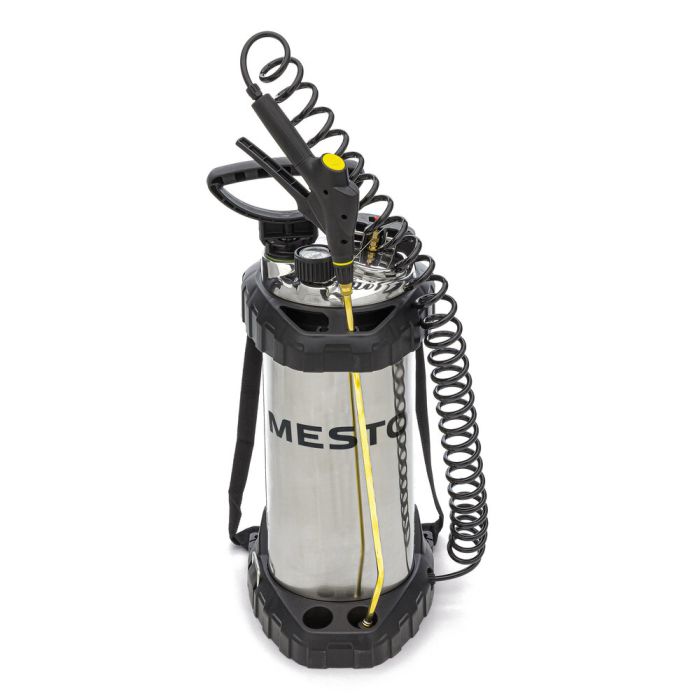

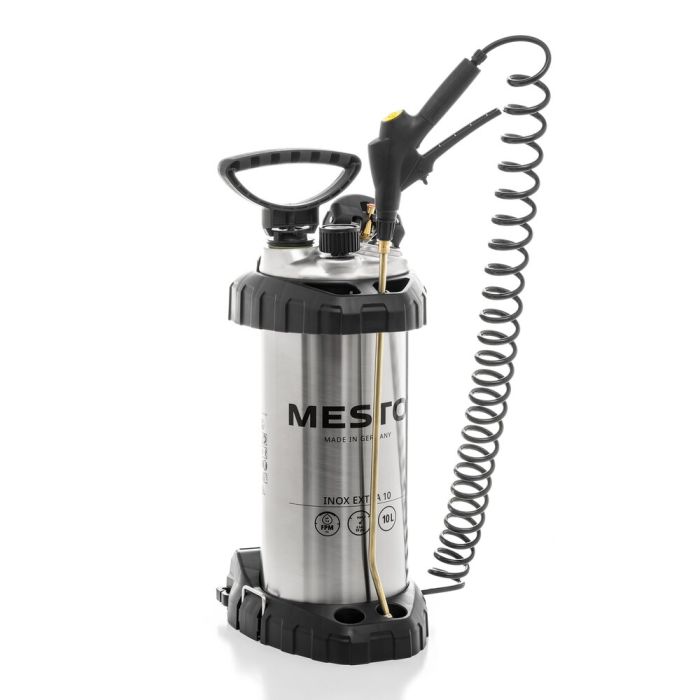

INOX EXTRA 10 compression sprayer
The new MESTO compression sprayer in a class of its own!
The stainless steel tank with a fill capacity of 10 liters offers extra comfort. Automatic pressure release when opening the cover of the extra-large separate filler opening. Effortless filling of the tank, without spilling valuable liquids and thus no contamination of the environment. The 2.5 meter long spiral hose for long reach. The 50 cm long brass spray wand with flat jet nozzle 80-01E with installed filter is 360° rotatable. The professional brass pump with ergonomic handle ensures convenient pumping and carrying. The device can be carried on the side with padded carrying strap, but can also be optionally equipped with padded back carrying straps. The safety interlock for the hose prevents unintentional loosening of the connection. A foot ring for a sturdy foothold when pumping. A high degree of stability due to a large base area. Other features such as pump, spray wand and extension wand holders on the device offer a comprehensive set of equipment for the device.
Ideal for: Construction industry, cleaning trade, vehicle cleaning, professional pest control
| Düsenanwendung | for release agents which require fine distribution in the construction industry |
|---|---|
| Product class | Performance **** |
| EAN | 4000903000509 |
| Article type | Compression sprayer |
| Fill capacity | 10 l |
| Total contents | 13 l |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Weight | 5,8 Kg |
| Tank material | Plastic |
| Portability | on the side |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution, Filter |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | for spiral hose D6 |
| Shut-off valve characteristics | with filter, with safety interlock |
| Hose length | 250 cm |
| Hose diameter | D6 |
| Safety valve | integrated in the tank cap |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | can be retrofitted |
| Device equipment | Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Safety interlock on the shut-off valve prevents unintentional spraying., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Padded carrying strap for greater wearer comfort when carrying at the side over the shoulder., Nozzle for liquids requiring fine distribution., Spiral hose with safety interlock., Extra large separate filler opening for simple filling, emptying and cleaning of the tank without having to unscrew the pump. |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
