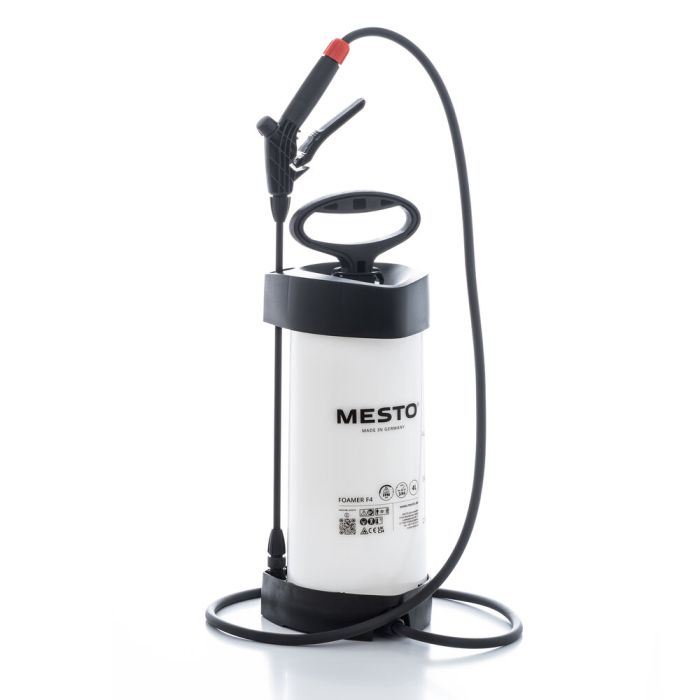

FOAMER F4
In the cleaning sector, more and more foaming cleaning agents are being used and applied. With its FOAMER series, MESTO now offers the ideal device for professional use. Depending on the agent and application, stable, adherent or flowing foams are sprayed on. The extended dwell time boosts the cleaning effect, allowing the removal of even the most stubborn dirt.
The robust 4 l device has been developed for continuous use in the professional cleaning sector.
The tank with a fill capacity of 4 l (total contents 6.5 l) can be carried on the side and has a large pressure reservoir, which helps to avoid frequent re-pumping. The FOAMER is equipped with an ergonomic shut-off valve with filter and a special flat jet nozzle 110-06 made of plastic. The 2.5m long polyethylene hose ensures comfortable working and long reach.
The 2-handed handle allows ergonomic pumping. FPM seals provide excellent resistance to many cleaning agents. The shut-off valve can be easily stored on the device thanks to the practical holder. The large filling funnel adds to the comprehensive set of equipment for the FOAMER. The device is equipped with a piston pressure gauge with installed safety valve. The supplied fleece pads help to guarantee a change in foam consistency.
Product class | Basic * |
---|---|
Düsenanwendung | for foaming agents |
Spraying agents | Acid foaming agents |
EAN | 4000903003654 |
Fill capacity | 4 l |
Total contents | 6,5 l |
Weight | 1,6 Kg |
Hose length | 200 cm |
Article type | Foamers |
Industry | Cleaning, Industry, Motor and commercial vehicles |
Applications | Foaming, Cleaning |
Max. operating pressure | 3 bar/44 psi/0.3 MPa |
Tank material | Plastic |
Portability | on the side |
Nozzle type | Flat jet rectangular distribution, Foam nozzle |
Nozzle material | Plastic |
Nozzle material | Plastic |
Spray wand material | Plastic |
Shut-off valve material | Plastic |
Shut-off valve connection | D8 |
Shut-off valve characteristics | with foam nozzle, with safety interlock, with filter |
Hose diameter | D8 |
Safety valve | ja |
Pressure gauge | Piston pressure gauge |
Compressed air filler valve | can be retrofitted |
Scope of delivery general | tank, Hose, shut-off valve, Spray wand, Carrying strap, Instructions for use, Pump, Elbow with nozzle, Fleece pads |
Device equipment | Ergonomic shut-off valve helps protect your wrist., Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Foot ring for a sturdy foothold even on uneven surfaces.Base with foot ring for sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Embossed level scale to monitor the level at all times., inkl. 3 Fleecepads zur Veränderung der Schaumqualität |
Select the desired download.

Type | Description | File extension | File size |
---|
If you miss a download, please write us via our contact form.

Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
