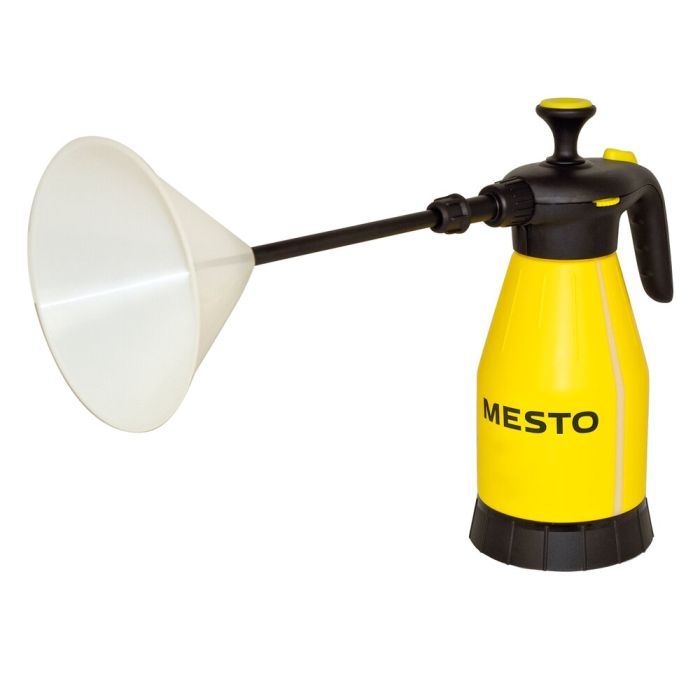

HERBI 360° pressure sprayer
The all-round device of the 1.5 liter pressure sprayer class offers users many advantages. A 1.5 L plastic tank with transparent level scale, safety valve with easy pressure relief option. Closed pump head to protect against dirt. 20cm extension wand for long reach, a hollow cone nozzle and a spray shield for fine and economical application of agents. Large filler opening (Ø 52 mm) for convenient filling, FPM seals resistant to pelargonic acid. Sturdy foothold thanks to wide foot ring. The use of high-quality FPM seals also makes it possible to use various, slightly acidic media.
Ideal for: Garden
| Product class | Performance **** |
|---|---|
| Spraying agents | Fertilizer, Herbicides/Fungicides/Insecticides, Pelargonic acid, Water |
| EAN | 4000903001704 |
| Fill capacity | 1,5 l |
| Total contents | 1,85 l |
| Weight | 0,511 Kg |
| Hose length | 17 cm |
| Article type | Pressure sprayers |
| Industry | House and garden, Gardening and landscaping, Forestry and agriculture, Fruit and wine growing |
| Applications | Wetting, Strengthening plants, Controlling pests, Controlling weeds |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic |
| Portability | hand portable |
| Nozzle type | Spray nozzle, Hollow cone |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve characteristics | ergonomic |
| Safety valve | ja |
| Pressure gauge | without |
| Compressed air filler valve | no |
| Scope of delivery general | tank, Nozzle(s), Instructions for use, Pump, Spray wand |
| additional equipment | Extension wand, Spray shield |
| Device equipment | Extra large filler opening for simple filling., Ergonomic handle for comfortable working., Foot ring for a sturdy foothold even on uneven surfaces.Base with foot ring for sturdy foothold when pumping., Level scale with viewing strips for simple reading., incl. extension wand for longer reach., incl. spray shield to prevent drift and for precise application., 360° swiveling and also allows upside down spraying!, 2 in 1 valve enables automatic pressure release in case of overpressure and manual pressure release, if required., Hollow cone nozzle for plant protection products on trees and shrubs. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
