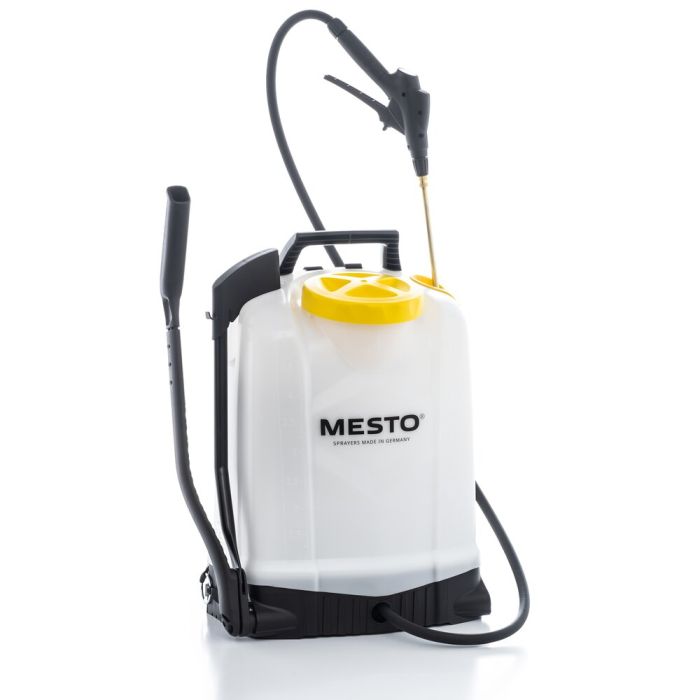

RS185 BM backpack sprayer
User-friendly backpack sprayer for professional use with internal piston pump for the highest level of user protection, offering the best wearing comfort due to padded S-shape straps as well as hip belt, pump lever that can be changed right/left, pump lever length and width adjustment, extra large filler opening, cover with loss protection and integrated measuring cups, ergonomic shut-off valve with integrated pressure gauge, 18 l fill capacity, FPM seals, made in Germany, guaranteed 20-year availability of MESTO spare parts, 50 cm brass spray wand with two different nozzles for various applications. The brass flat jet nozzle 80-02E for area spraying and an adjustable brass nozzle from spot jet to fine and even atomization.
Ideal for: Professional vector control
| Düsenanwendung | for cleaning agents |
|---|---|
| Product class | Performance **** |
| EAN | 4000903002282 |
| Article type | Backpack sprayer |
| Fill capacity | 18 l |
| Total contents | 20 l |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Weight | 4,94 Kg |
| Tank material | Plastic |
| Portability | Back, Carrying straps padded, Hip belt, Chest strap |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution |
| Spray pattern | Adjustable: Spot to full jet, Spray nozzle |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | D10 |
| Shut-off valve characteristics | with pressure gauge, with filter, with safety interlock |
| Hose length | 150 cm |
| Hose diameter | D10 |
| Safety valve | no |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | no |
| additional equipment | Pump holder, Spray shield holder, filled spare parts kit, Filler screen, additional nozzle |
| Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with screen, tank cap, integrated measuring cup and captive loop. Thanks to the drain channel, any spilled liquid flows away from your back., Spray wand and extension wand holders for space-saving and safe storage., Spray shield holder for storing the spray shield on the sprayer., Professional back harness with chest strap and hip belt for back-friendly working., Embossed level scale to monitor the level at all times., Pump lever with length and width adjustment can be installed on the left and right., incl. filler screen for pre-filtering self-prepared biological mixtures., inkl. Spezialfett zur Pflege und Wartung der beweglichen Teile., Hose reinforced with fabric insert., Zwei unterschiedliche Düsen passend für verschiedene Anwendungen., Flat jet nozzle for area spraying., Adjustable nozzle from spot jet to fine, even atomization., Large and ergonomically-shaped back support area for particularly comfortable carrying., ede51def-2f4b-48fa-b6c2-bb3852e24d11 |
