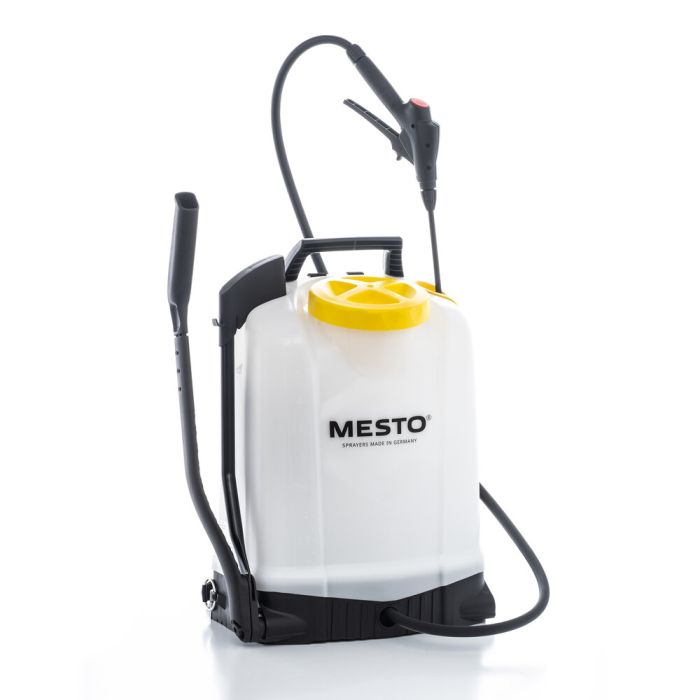

RS185 PLUS backpack sprayer
User-friendly backpack sprayer for professional use in the construction industry with internal piston pump for the highest level of user protection, offering the best wearing comfort due to padded S-shape straps as well as hip belt, pump lever that can be changed right/left, pump lever length and width adjustment, extra large filler opening, cover with loss protection and integrated measuring cups, ergonomic shut-off valve with integrated pressure gauge and filter, 50 cm brass spray wand with brass flat jet nozzle 80-04E, 18 l fill capacity, FPM seals, made in Germany, guaranteed 20-year availability of MESTO spare parts.
Ideal for: Construction industry for spraying viscous construction chemicals
| Düsenanwendung | for area spraying and for viscous construction chemicals |
|---|---|
| Product class | Performance **** |
| EAN | 4000903001438 |
| Article type | Backpack sprayer |
| Fill capacity | 18 l |
| Total contents | 20 l |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Weight | 4,94 Kg |
| Tank material | Plastic |
| Portability | Back, Carrying straps padded, Hip belt, Chest strap |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | D10 |
| Shut-off valve characteristics | with pressure gauge, with filter, with safety interlock |
| Hose length | 150 cm |
| Hose diameter | D10 |
| Safety valve | no |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | no |
| additional equipment | Pump holder, Spray shield holder, filled spare parts kit, Filler screen |
| Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with screen, tank cap, integrated measuring cup and captive loop. Thanks to the drain channel, any spilled liquid flows away from your back., Spray wand and extension wand holders for space-saving and safe storage., Spray shield holder for storing the spray shield on the sprayer., Professional back harness with chest strap and hip belt for back-friendly working., Embossed level scale to monitor the level at all times., Pump lever with length and width adjustment can be installed on the left and right., incl. filler screen for pre-filtering self-prepared biological mixtures., inkl. Spezialfett zur Pflege und Wartung der beweglichen Teile., Hose reinforced with fabric insert., Flat jet nozzle for area spraying., Large and ergonomically-shaped back support area for particularly comfortable carrying., ede51def-2f4b-48fa-b6c2-bb3852e24d11 |
