SAUGFIX suction device
5 L, with ball valve and suction channel
SAUGFIX suction device is available to buy in increments of 1

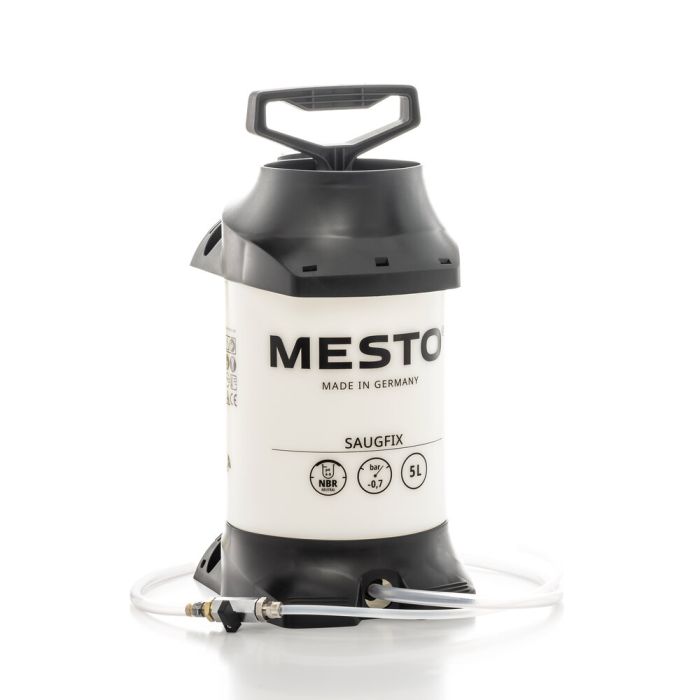

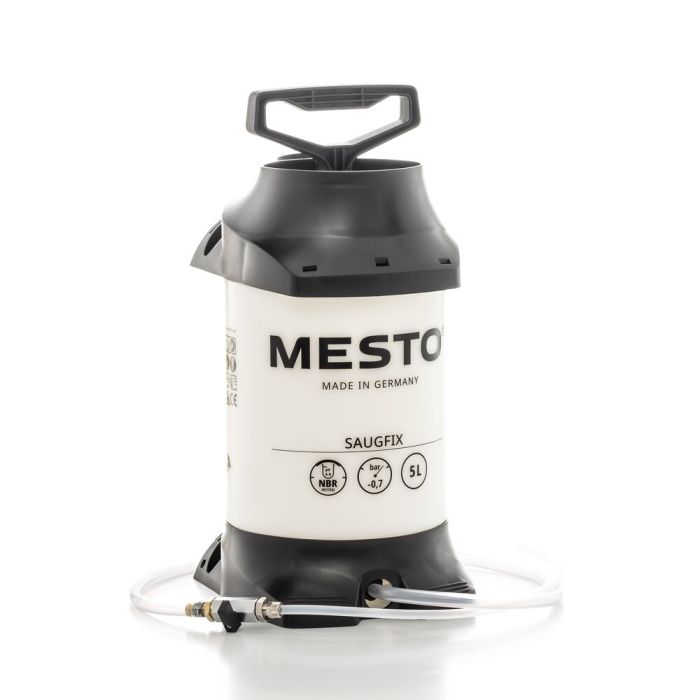

The SAUGFIX suction device from MESTO features a 5 l plastic tank and a suction hose with ball valve and suction channel. Due to the generated 0.7 bar low pressure, liquids can be extracted effortlessly. The device is equipped with a vacuum meter and a plastic pump with protection cap.
The SAUGFIX device is designed for extracting low-viscosity lubricating oil and other non-aggressive and not easily inflammable liquids.
| Product class | Profi *** |
|---|---|
| EAN | 4000903004088 |
| Fill capacity | 5 l |
| Total contents | 8 l |
| Hose length | 100 cm |
| Article type | Suction device |
| Industry | Trade, Plumbing, heating and air conditioning, Industry, Motor and commercial vehicles |
| Applications | Extracting, Venting |
| Max. operating pressure | -0.7 bar/-10 psi |
| Tank material | Plastic transparent |
| Portability | hand portable |
| Nozzle material | Plastic transparent |
| Nozzle material | Plastic transparent |
| Spray wand material | Plastic transparent |
| Shut-off valve material | Plastic transparent |
| Shut-off valve connection | with ball valve and suction channel |
| Shut-off valve characteristics | Vacuum pump, with 2-handed handle, ergonomic |
| Hose diameter | D8 |
| Safety valve | integrated in the vacuum meter |
| Pressure gauge | Vacuum meter |
| Compressed air filler valve | no |
| Scope of delivery general | tank, Hose, Instructions for use |
| Device equipment | Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Plastic protection cap for improved chemical resistance., Base with foot ring for a sturdy foothold when pumping., Embossed level scale to monitor the level at all times. |
