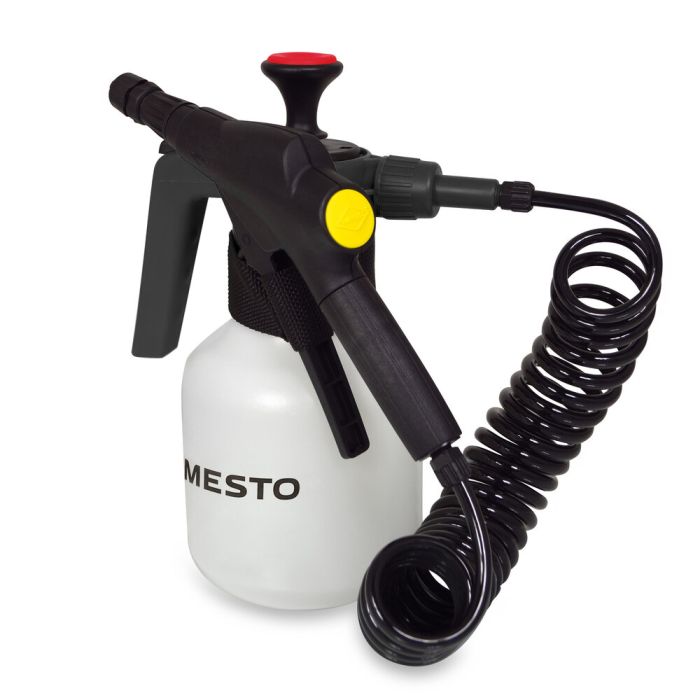

BELT HELD PLUS 1.5 pressure sprayer
The BELT HELD PLUS 1.5 sprayer with a fill capacity of 1.5 liter can be carried ergonomically on a belt. And get started with ease – thanks to the spiral hose and the lightweight shut-off valve you benefit from optimum freedom of movement and extremely long reach. Further, safe attachment to a belt ensures excellent balance, thereby offering maximum safety and comfort even when working at height.
| Product class | Profi *** |
|---|---|
| Spraying agents | Construction chemicals, Impregnating agents, Oily agents, Acid detergents, Acid disinfectants |
| EAN | 4000903003135 |
| Fill capacity | 1,5 l |
| Total contents | 2 l |
| Weight | 0,72 Kg |
| Hose length | 250 cm |
| Article type | Pressure sprayers |
| Industry | Construction, Structural and civil engineering, Trade, Cleaning, Industry |
| Applications | Concrete formworking, Disinfecting, Priming, Impregnating, Cleaning, Pre-wetting |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic |
| Portability | belt portable |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | Spiral hose D8 |
| Shut-off valve characteristics | with filter |
| Hose diameter | D8 |
| Safety valve | ja |
| Pressure gauge | without |
| Compressed air filler valve | no |
| Scope of delivery general | tank, Nozzle(s), Instructions for use, Pump, Hose, shut-off valve, Carrying strap |
| Device equipment | Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Extra large filler opening for simple filling., Polypropylene parts (PP) for improved chemical resistance to. acids and bases., Flat jet nozzle for area spraying., Safety valve for automatic pressure release in case of 3 bar overpressure., Carrying strap for attaching to the belt, Spiral hose for long reach, Safety interlock on the shut-off valve prevents unintentional spraying. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
