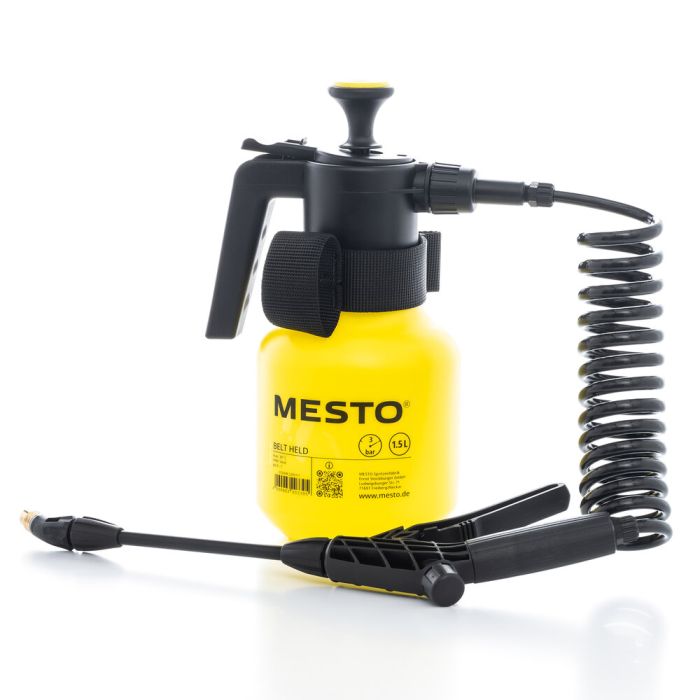

BELT HELD pressure sprayer
The BELT HELD pressure sprayer with a fill capacity of 1.5 liters can be carried ergonomically on a belt.
And get started with ease – thanks to the spiral hose and the lightweight shut-off valve you benefit from optimum freedom of movement.
Equipped with a hollow cone nozzle, the BELT HELD is the ideal helper for work in the garden.
By attaching the tank to a belt, gardening becomes more enjoyable than ever as you do not have to carry heavy tanks.
The spray wand allows you to also reach the inside of your boxwoods and to rid them of the boxwood moth caterpillar.
The sprayer is suitable for plant protection products containing pelargonic acid to control weeds.
| Spraying agents | Fertilizer, Herbicides/Fungicides/Insecticides, Pelargonic acid, Water |
|---|---|
| Product class | Profi *** |
| EAN | 4000903003395 |
| Fill capacity | 1,5 l |
| Total contents | 2 l |
| Weight | 0,6 Kg |
| Hose length | 125 cm |
| Article type | Pressure sprayers |
| Industry | House and garden, Gardening and landscaping, Forestry and agriculture, Fruit and wine growing, Pest control |
| Applications | Wetting, Irrigating, Cooling, Strengthening plants, Controlling pests, Controlling weeds |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic |
| Portability | belt portable |
| Nozzle type | Spray nozzle, Hollow cone |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | Spiral hose D8 |
| Shut-off valve characteristics | with filter |
| Hose diameter | D8 |
| Safety valve | ja |
| Pressure gauge | without |
| Compressed air filler valve | no |
| Scope of delivery general | tank, Nozzle(s), Instructions for use, Pump, Spray wand, Hose, shut-off valve, Elbow with nozzle, Carrying strap |
| Device equipment | Ergonomic shut-off valve helps protect your wrist., Extra large filler opening for simple filling., Safety valve for automatic pressure release in case of 3 bar overpressure., Hollow cone nozzle for plant protection products on trees and shrubs., Carrying strap for attaching to the belt, incl. extension wand for longer reach. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
