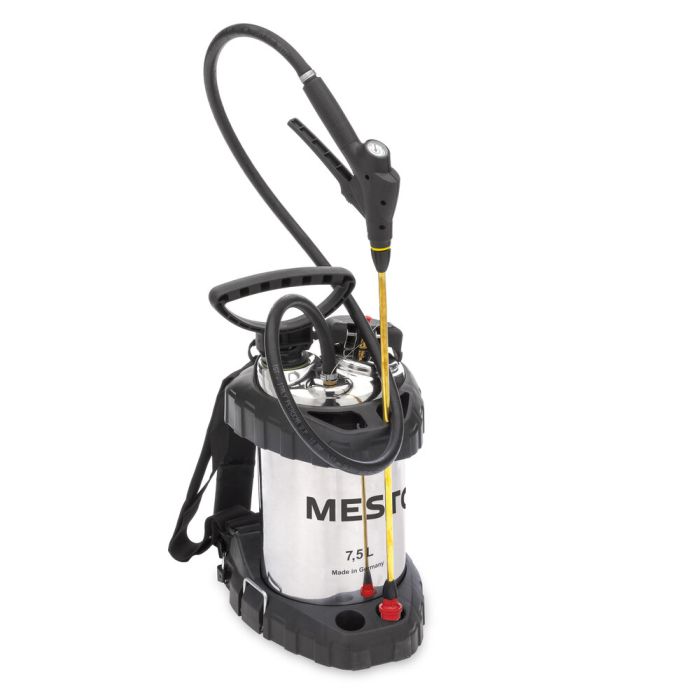

INOX BM 7.5 compression sprayer
This professional 7.5 liter compression sprayer is especially suitable for professional users and is specifically used for the professional control of tropical and vector-borne diseases. The tank is made of stainless steel and can be carried on the side. Optionally, it can be equipped with a padded back carrying strap and a hip belt. The 50 cm long brass spray wand with ceramic flat jet nozzle 80-02 is 360° rotatable and the 1.5 m long cold-flexible and oil-resistant hose ensures optimal reach for working. Thanks to the large separate filler opening, the device can be filled cleanly and effortlessly. Equipped with an ergonomic shut-off valve with filter. The device offers a large stable base and thus a sturdy foothold even on uneven ground. The installed foot rings facilitate pumping. Other features such as spray wand and extension wand holders and a professional brass pump offer a comprehensive set of equipment for the device.
FPM seals provide excellent resistance to many chemicals.
Ideal for: Controlling vector-borne and tropical diseases
This device complies with the WHOPES guidelines according to the WHO!
| Düsenanwendung | for disinfectants as well as pest and vector control |
|---|---|
| Product class | Performance **** |
| EAN | 4000903000431 |
| Article type | Compression sprayer |
| Fill capacity | 7,5 l |
| Total contents | 9 l |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Weight | 5,3 Kg |
| Tank material | Plastic |
| Portability | on the side |
| Nozzle type | Flat jet rectangular distribution, Spray nozzle, Filter |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | D10 |
| Shut-off valve characteristics | with filter, with safety interlock, with pressure gauge |
| Hose length | 150 cm |
| Hose diameter | D10 |
| Safety valve | integrated in the tank cap |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | can be retrofitted |
| additional equipment | Constant flow valve 1.5 bar |
| Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Nozzle for liquids requiring fine distribution., Spiral hose with safety interlock., Carrying strap for carrying at the side over the shoulder., Extra large separate filler opening for simple filling, emptying and cleaning of the tank without having to unscrew the pump., The constant flow valve (1.5 bar) is designed to maintain a constant pressure and thus guarantees constant, economical application of agent., ede51def-2f4b-48fa-b6c2-bb3852e24d11 |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
