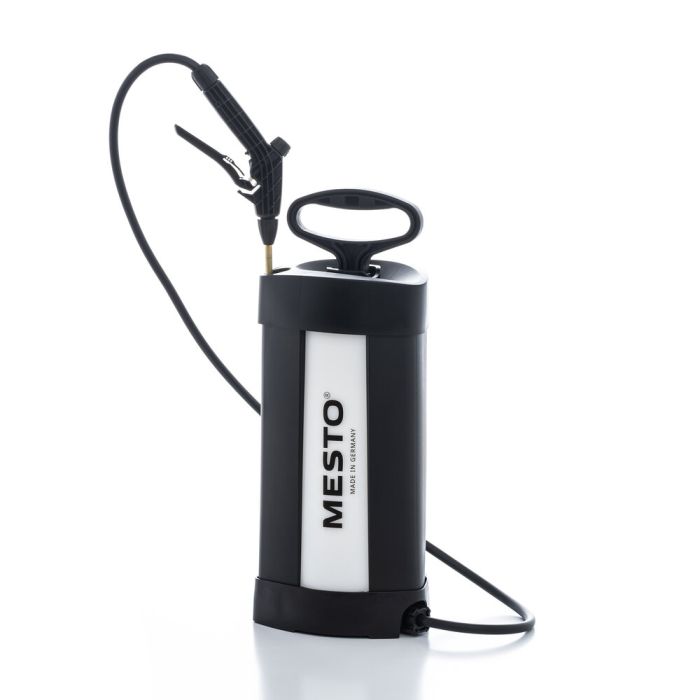

PICO BLACK EDITION compression sprayer
Great design combined with practical details.
The tank is made of plastic with a fill capacity of 5 l and an operating pressure of 3 bar. The ergonomic plastic pump, the shut-off valve with filter screen and the integrated filling funnel provide optimum working conditions. In addition, PICO features a piston pressure gauge with safety valve, a 40 cm brass spray wand with brass nozzle and a 1.3 m hose. It can be carried on the side, offers a high degree of stability and optimum storage for spray wand and extension wand.
Ideal for: Plant care, weed control, flower care, liquid fertilizing
| Düsenanwendung | Plant protection on trees and shrubs |
|---|---|
| Product class | Basic * |
| EAN | 4000903004231 |
| Article type | Compression sprayer |
| Fill capacity | 5 l |
| Total contents | 6,5 l |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic |
| Portability | on the side |
| Nozzle type | Spray nozzle, Hollow cone |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | D8 |
| Shut-off valve characteristics | with safety interlock |
| Hose length | 130 cm |
| Hose diameter | D8 |
| Safety valve | ja |
| Pressure gauge | Piston pressure gauge |
| Compressed air filler valve | can be retrofitted |
| Device equipment | Ergonomic shut-off valve helps protect your wrist., Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Foot ring for a sturdy foothold even on uneven surfaces.Base with foot ring for sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Hose coupling with extendable screw for simple assembly., Embossed level scale to monitor the level at all times. |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
