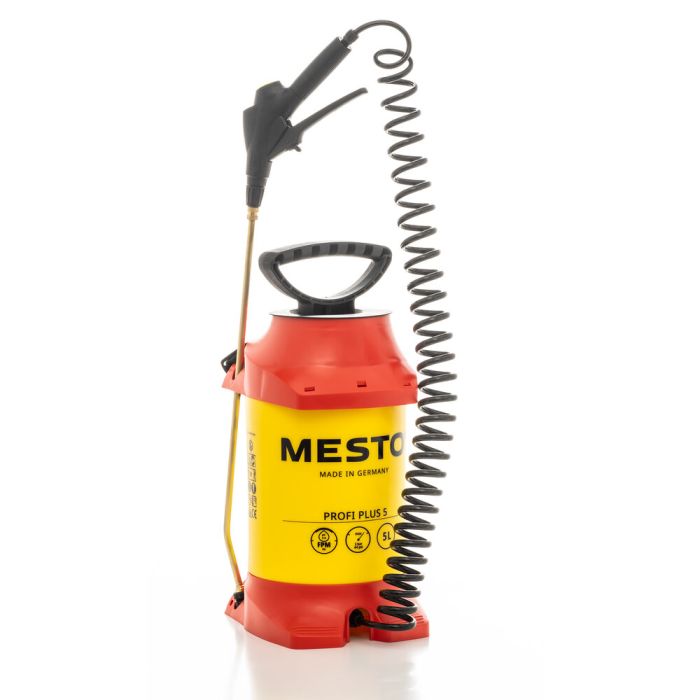

PROFI PLUS 5 compression sprayer
The plastic tank with a fill capacity of 5 l is made of plastic, can be carried on the side and is equipped with a base, which ensures that the tank has a sturdy foothold even with a low filling level or on an uneven surface. Additionally, the base protects the connection between the hose and the tank from damage. The 50 cm long, 360° rotatable brass spray wand features a brass flat jet nozzle 80-01 with installed filter. The plastic pump with ergonomic pump handle and steel piston rod is robust and convenient for pumping. The funnel cover installed at the pump is designed to protect against dirt. The spiral hose, which can be extended to a length of 2.5 m, is space saving and ensures long reach. The shut-off valve contains a filter screen, which is easy to clean and protects the nozzle from clogging. The integrated filling funnel for convenient filling of the device, spray wands and extension wands that can be stored optimally on the device and the piston pressure gauge with installed safety valve offer a comprehensive set of equipment for the PROFI PLUS.
Versatile accessories are available for the PROFI PLUS, such as extension wands, spray shields, transport trolley, compressed air filler valves and carrying strap. The device can thus also be optionally carried comfortably on the back.
The robust PROFI PLUS is ideally suited for continuous use by professional users.
Ideal for: Construction, trade
Product class | Profi *** |
---|---|
EAN | 4000903327514 |
Article type | Compression sprayer |
Fill capacity | 5 l |
Total contents | 8 l |
Max. operating pressure | 3 bar/44 psi/0.3 MPa |
Weight | 2,6 Kg |
Tank material | Plastic |
Portability | on the side, Back, Carrying straps padded |
Nozzle type | Spray nozzle, Flat jet rectangular distribution, Filter |
Nozzle material | Plastic |
Spray wand material | Plastic |
Shut-off valve material | Plastic |
Shut-off valve connection | for spiral hose D6 |
Shut-off valve characteristics | with safety interlock, with filter |
Hose length | 250 cm |
Hose diameter | D6 |
Safety valve | replaceable |
Pressure gauge | Piston pressure gauge |
Compressed air filler valve | can be retrofitted |
Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Embossed level scale to monitor the level at all times., Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., The funnel cover prevents dirt contaminating the spraying agent and protects against contamination and clogging of the nozzle., Hose coupling with filter to prevent clogging of the nozzle., Nozzle for liquids requiring fine distribution. |
