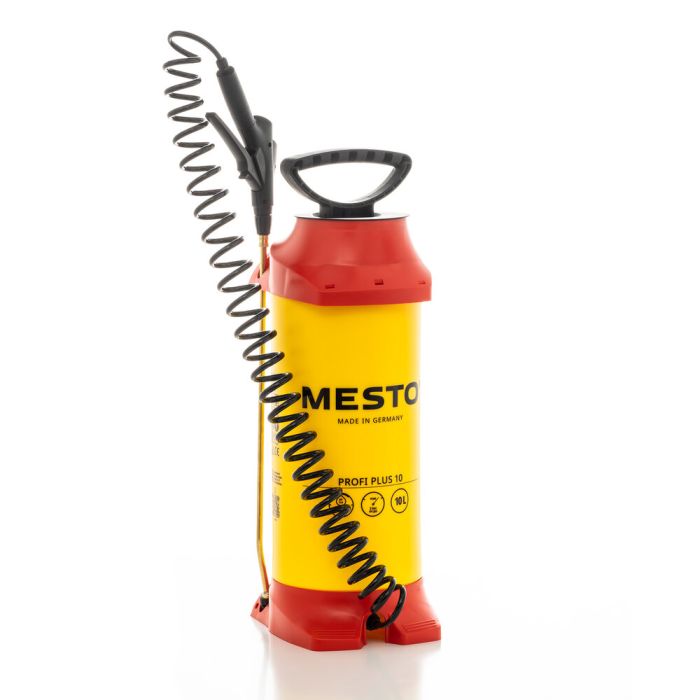

PROFI PLUS 10 compression sprayer
The plastic tank with a fill capacity of 10 l is made of plastic, can be carried on the side and is equipped with a base, which ensures that the tank has a sturdy foothold even with a low filling level or on an uneven surface. Additionally, the base protects the connection between the hose and the tank from damage. The 50 cm long, 360° rotatable brass spray wand features a brass flat jet nozzle 80-01 with installed filter. The plastic pump with ergonomic pump handle and steel piston rod is robust and convenient for pumping. The funnel cover installed at the pump is designed to protect against dirt. The spiral hose, which can be extended to a length of 2.5 m, is space saving and ensures long reach. The shut-off valve contains a filter screen, which is easy to clean and protects the nozzle from clogging. The integrated filling funnel for convenient filling of the device, spray wands and extension wands that can be stored optimally on the device and the piston pressure gauge with installed safety valve offer a comprehensive set of equipment for the PROFI PLUS.
Versatile accessories are available for the PROFI PLUS, such as extension wands, spray shields, transport trolley, compressed air filler valves and carrying strap. The device can thus also be optionally carried comfortably on the back.
The robust PROFI PLUS is ideally suited for continuous use by professional users.
Ideal for: Construction, trade
Product class | Profi *** |
---|---|
Düsenanwendung | for release agents which require fine distribution in the construction industry |
Spraying agents | Curing retarder, Construction chemicals, Primers, Impregnating agents, Glazes, Oily agents |
EAN | 4000903327019 |
Fill capacity | 10 l |
Total contents | 12,5 l |
Weight | 3,1 Kg |
Hose length | 250 cm |
Article type | Compression sprayer |
Industry | Construction, Structural and civil engineering, Highway construction, Trade, Painters & decorators, Tilers, Plumbing, heating and air conditioning |
Applications | Concrete curing, Concrete formworking, Priming, Impregnating, Preserving, Lasuren aufbringen, Lubricating, Pre-wetting |
Max. operating pressure | 3 bar/44 psi/0.3 MPa |
Tank material | Plastic |
Portability | on the side, Back, Carrying straps padded |
Nozzle type | Spray nozzle, Flat jet rectangular distribution, Filter |
Nozzle material | Plastic |
Nozzle material | Plastic |
Spray wand material | Plastic |
Shut-off valve material | Plastic |
Shut-off valve connection | for spiral hose D6 |
Shut-off valve characteristics | with safety interlock, with filter |
Hose diameter | D6 |
Safety valve | replaceable |
Pressure gauge | Piston pressure gauge |
Compressed air filler valve | can be retrofitted |
Scope of delivery general | tank, Hose, Pump, shut-off valve, Spray wand, Elbow with nozzle, Instructions for use, Carrying strap |
Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Embossed level scale to monitor the level at all times., Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., The funnel cover prevents dirt contaminating the spraying agent and protects against contamination and clogging of the nozzle., Hose coupling with filter to prevent clogging of the nozzle., Nozzle for liquids requiring fine distribution. |
Select the desired download.

Type | Description | File extension | File size |
---|
If you miss a download, please write us via our contact form.

Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
