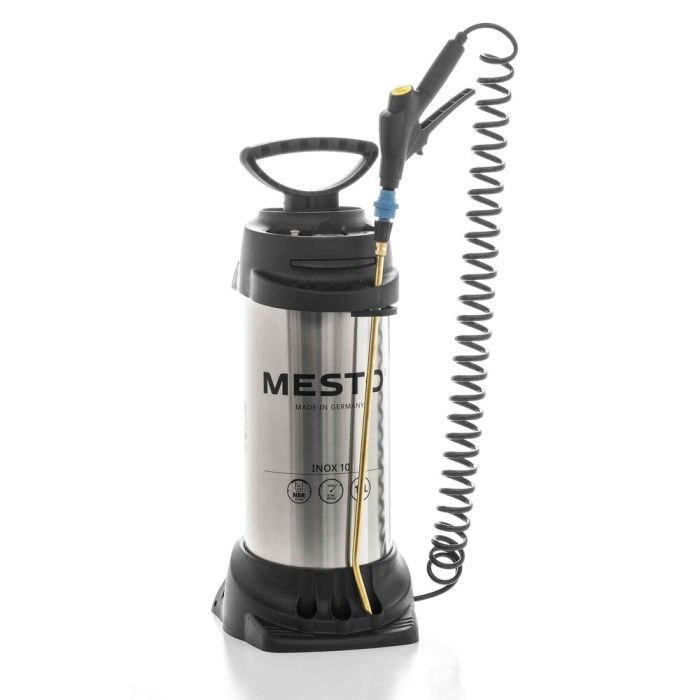

INOX 10 compression sprayer
This professional 10 liter compression sprayer is particularly suitable for the professional garden sector. The tank is made of stainless steel and can be carried on the back with padded carrying strap. The 50 cm long brass spray wand is 360° rotatable and the 2.5 m long spiral hose with safety interlock ensures optimal reach for working. With safety valve and replaceable pressure gauge. The device features a 2bar constant flow valve. This valve ensures a permanent pressure and thus guarantees the constant, economical application of agents. Other features such as pump, spray wand and extension wand holders and a stocked spare parts compartment on the device offer a comprehensive set of equipment for the device.
Ideal for: Professional garden centers, care for gardens with large trees, forestry, care for espalier trees
| Product class | Performance **** |
|---|---|
| Düsenanwendung | Plant protection on trees and shrubs |
| Spraying agents | Fertilizer, Herbicides/Fungicides/Insecticides, Water |
| EAN | 4000903361525 |
| Fill capacity | 10 l |
| Total contents | 13 l |
| Weight | 4,8 Kg |
| Hose length | 250 cm |
| Article type | Compression sprayer |
| Industry | House and garden, Gardening and landscaping, Forestry and agriculture, Fruit and wine growing |
| Applications | Wetting, Irrigating, Whitewashing, Cooling, Strengthening plants, Controlling pests, Controlling weeds |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Tank material | Plastic |
| Portability | Back, Carrying straps padded |
| Nozzle type | Spray nozzle, Hollow cone |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | for spiral hose D6 |
| Shut-off valve characteristics | with filter, with safety interlock |
| Hose diameter | D6 |
| Safety valve | replaceable |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | can be retrofitted |
| Scope of delivery general | tank, Hose, shut-off valve, Spray wand, Nozzle(s), Carrying strap, Instructions for use, Pump |
| additional equipment | Pump holder, filled spare parts kit, Filler screen, Constant flow valve 2 bar |
| Device equipment | Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Safety interlock on the shut-off valve prevents unintentional spraying., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Pump holder prevents soiling of the pump when filling., Stocked spare parts compartment with spare seals., Padded back carrying straps for carrying on the back., Spiral hose with safety interlock., incl. filler screen for pre-filtering self-prepared biological mixtures., Druckbegrenzungsventil (2 bar) sorgt für einen dauerhaft, konstanten Druck und gewährleistet dadurch eine gleichbleibende, mittelsparende Mittelausbringung. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
