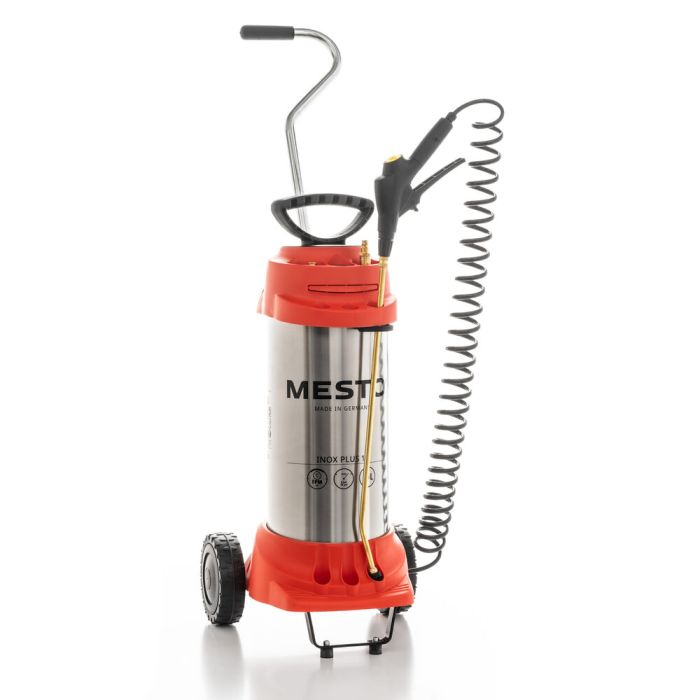

INOX PLUS 10 compression sprayer
This professional compression sprayer is particularly suitable for the professional sector. The tank is made of stainless steel, can be carried on the side with padded carrying strap, but can also be optionally equipped with padded back carrying straps. The supplied transport trolley with large elastic tire wheels enables convenient transport even on uneven ground. The compressed air filler valve with quick snap coupling NW 7.2 installed in the tank offers the possibility of filling the device with a compressor. This eliminates the need for manual pumping. The 50 cm long brass spray wand with flat jet nozzle 80-01E with installed filter is 360° rotatable. The 2.5 m long spiral hose with safety interlock ensures optimal reach for working. With safety valve and replaceable pressure gauge. Other features such as pump, spray wand and extension wand holders on the device offer a comprehensive set of equipment for the device. A constant flow valve can also be ordered optionally for this device. A constant flow valve ensures a permanent pressure and thus guarantees the constant, economical application of agents.
Ideal for: Construction industry, cleaning trade, vehicle cleaning, professional pest control
| Product class | Performance **** |
|---|---|
| Düsenanwendung | for release agents which require fine distribution in the construction industry |
| Spraying agents | Curing retarder, Construction chemicals, Disinfectant, Primers, Impregnating agents, Oily agents, Cleaning agent |
| EAN | 4000903361549 |
| Fill capacity | 10 l |
| Total contents | 13 l |
| Weight | 6,7 Kg |
| Hose length | 250 cm |
| Article type | Compression sprayer |
| Industry | Construction, Structural and civil engineering, Highway construction, Trade, Painters & decorators, Tilers, Plasterers, Cleaning, Industry, Motor and commercial vehicles, Pest control |
| Applications | Concrete curing, Concrete formworking, Disinfecting, Priming, Impregnating, Preserving, Cleaning, Controlling pests, Lubricating, Pre-wetting |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Tank material | Plastic |
| Portability | on the side, can be rolled |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution, Filter |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | for spiral hose D6 |
| Shut-off valve characteristics | with filter, with safety interlock |
| Hose diameter | D6 |
| Safety valve | replaceable |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | ja |
| Scope of delivery general | tank, Hose, shut-off valve, Spray wand, Nozzle(s), Carrying strap, Instructions for use, Pump |
| additional equipment | Pump holder, filled spare parts kit, Transport trolley, Funnel cover, Compressed air filler valve with handle, additional nozzle |
| Device equipment | Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Safety interlock on the shut-off valve prevents unintentional spraying., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Pump holder prevents soiling of the pump when filling., Stocked spare parts compartment with spare seals., Spiral hose with safety interlock., The funnel cover prevents dirt contaminating the spraying agent and protects against contamination and clogging of the nozzle., Transport trolley with large wheels for smooth and easy transport also on uneven surfaces., incl. rechargeable compressed air filler valve with quick snap coupling (size 7.2) and constant flow valve for connection to a compressor., Zwei unterschiedliche Düsen passend für verschiedene Anwendungen., Nozzle for liquids requiring fine distribution. |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Devices may not be used for spraying plant protection liquids.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
