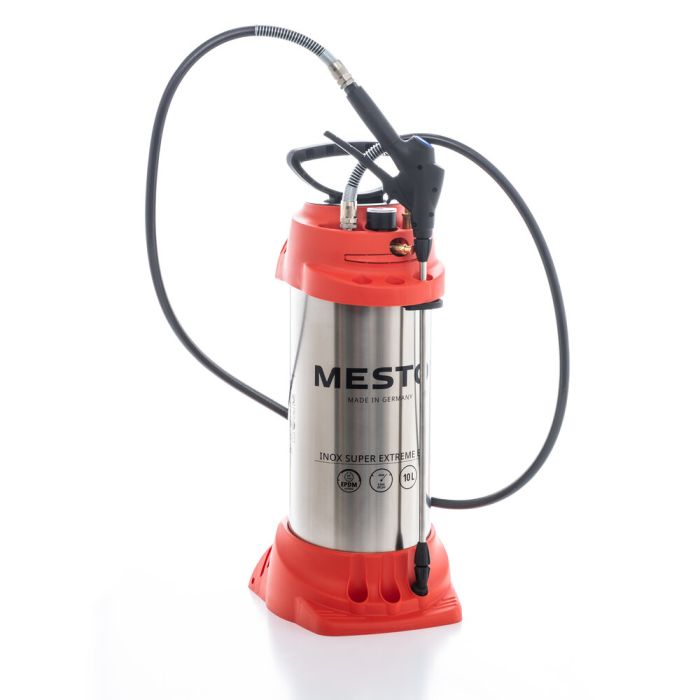

INOX SUPER EXTREME E10 compression sprayer
MESTO INOX SUPER EXTREME with a fill capacity of up to 10 l and an operating pressure of up to 6 bar perfectly combines the robustness of a stainless steel tank (outside) with the chemical resistance of a plastic tank (inside).
Thanks to its 2m chemical-resistant special hose, the ergonomic shut-off valve with integrated filter, as well as the 360 ° rotatable stainless steel spray wand with chemical-resistant flat jet nozzle 90-02, MESTO INOX SUPER EXTREME is the perfect helper for the professional application of various highly acidic or highly alkaline chemicals (depending on the device version). EPDM seals provide excellent resistance to many cleaning agents. The installed funnel cover is designed to protect against dirt. The integrated compressed air filler valve (6222NB) is ideal for filling the device easily and conveniently with a compressor.
The device is equipped with a spare parts box containing the most important seals and an additional 1.1 mm stainless steel hollow cone nozzle. The large foot ring ensures a stable and sturdy foothold.
| Düsenanwendung | for cleaning agents |
|---|---|
| Product class | Premium ***** |
| EAN | 4000903361693 |
| Article type | Compression sprayer |
| Fill capacity | 10 l |
| Total contents | 13 l |
| Max. operating pressure | 6 bar/88 psi/0.6 MPa |
| Weight | 5,78 Kg |
| Tank material | Plastic |
| Portability | on the side |
| Nozzle type | Spray nozzle, Flat jet rectangular distribution |
| Spray pattern | Spray nozzle, Hollow cone |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | D10 |
| Shut-off valve characteristics | with filter, with safety interlock, with coated spring |
| Hose length | 200 cm |
| Hose diameter | D10 |
| Safety valve | replaceable |
| Pressure gauge | Pressure gauge with indicator |
| Compressed air filler valve | ja |
| additional equipment | Pump holder, filled spare parts kit, Filler screen, Funnel cover, Compressed air filler valve with handle, additional nozzle |
| Device equipment | chemical-resistant special hose., Ergonomic shut-off valve with filter helps protect your wrist. Filter is easy to clean and prevents clogging of the nozzle., Shut-off valve with specially coated spring for improved chemical resistance., Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Pump holder prevents soiling of the pump when filling., Stocked spare parts compartment with spare seals., The funnel cover prevents dirt contaminating the spraying agent and protects against contamination and clogging of the nozzle., Padded back carrying straps for carrying on the back., Stainless steel tank with plastic inner tank for improved chemical resistance., Particularly chemical-resistant equipment for very aggressive liquids., incl. rechargeable compressed air filler valve with quick snap coupling (size 7.2) and constant flow valve for connection to a compressor., Nozzle for particularly aggressive liquids., Zwei unterschiedliche Düsen passend für verschiedene Anwendungen. |
