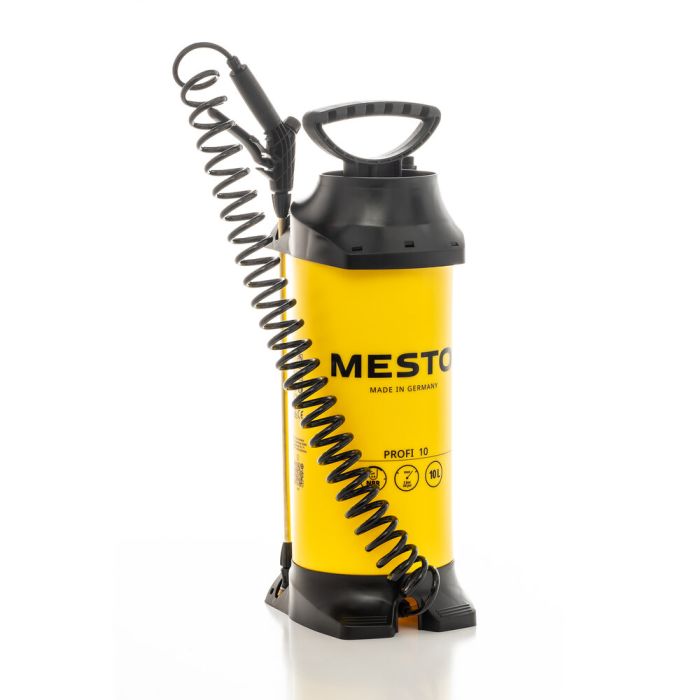

PROFI 10 compression sprayer
The tank with a fill capacity of 10 l is made of plastic, can be carried on the side and is equipped with a base, which ensures that the tank has a sturdy foothold even with a low filling level or on an uneven surface. Additionally, the base protects the connection between the hose and the tank from damage. The 50 cm long, 360° rotatable brass spray wand features a brass hollow cone nozzle. A 48cm brass extension wand is already included in the scope of delivery. The spiral hose, which can be extended to a length of 2.5 m, is space saving and ensures long reach. The shut-off valve contains a filter screen, which is easy to clean and protects the nozzle from clogging. The integrated filling funnel for convenient filling of the device, spray wands and extension wands that can be stored optimally on the device and the piston pressure gauge with installed safety valve offer a comprehensive set of equipment for the PROFI.
Versatile accessories are available for the PROFI, such as extension wands, spray shields, transport trolley, compressed air filler valves, carrying strap and a funnel cover. The device can thus also be optionally carried comfortably on the back.
The robust PROFI is ideally suited for continuous use by „green“ professionals.
Ideal for: Plant care, weed control, flower care, liquid fertilizing
Product class | Profi *** |
---|---|
Düsenanwendung | Plant protection on trees and shrubs |
Spraying agents | Fertilizer, Herbicides/Fungicides/Insecticides, Water |
EAN | 4000903327002 |
Fill capacity | 10 l |
Total contents | 12,5 l |
Weight | 3 Kg |
Hose length | 250 cm |
Article type | Compression sprayer |
Industry | House and garden, Gardening and landscaping, Forestry and agriculture, Fruit and wine growing |
Applications | Wetting, Irrigating, Cooling, Strengthening plants, Controlling pests |
Max. operating pressure | 3 bar/44 psi/0.3 MPa |
Tank material | Plastic |
Portability | on the side, Back, Carrying straps padded |
Nozzle type | Spray nozzle, Hollow cone |
Nozzle material | Plastic |
Nozzle material | Plastic |
Spray wand material | Plastic |
Shut-off valve material | Plastic |
Shut-off valve connection | for spiral hose D6 |
Shut-off valve characteristics | with safety interlock |
Hose diameter | D6 |
Safety valve | replaceable |
Pressure gauge | Piston pressure gauge |
Compressed air filler valve | can be retrofitted |
Scope of delivery general | tank, Hose, Pump, shut-off valve, Spray wand, Elbow with nozzle, Instructions for use, Carrying strap |
Device equipment | Ergonomic shut-off valve helps protect your wrist., Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Embossed level scale to monitor the level at all times., incl. extension wand for longer reach. |
Select the desired download.

Type | Description | File extension | File size |
---|
If you miss a download, please write us via our contact form.

Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
