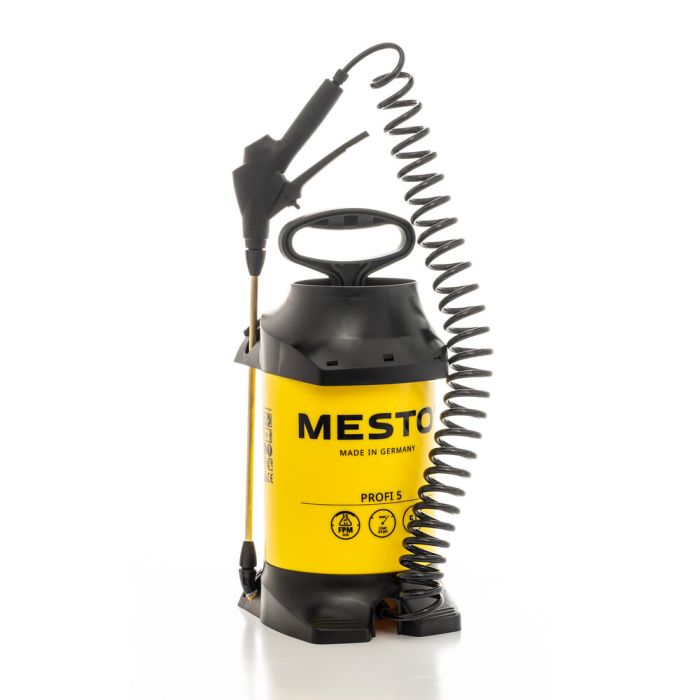

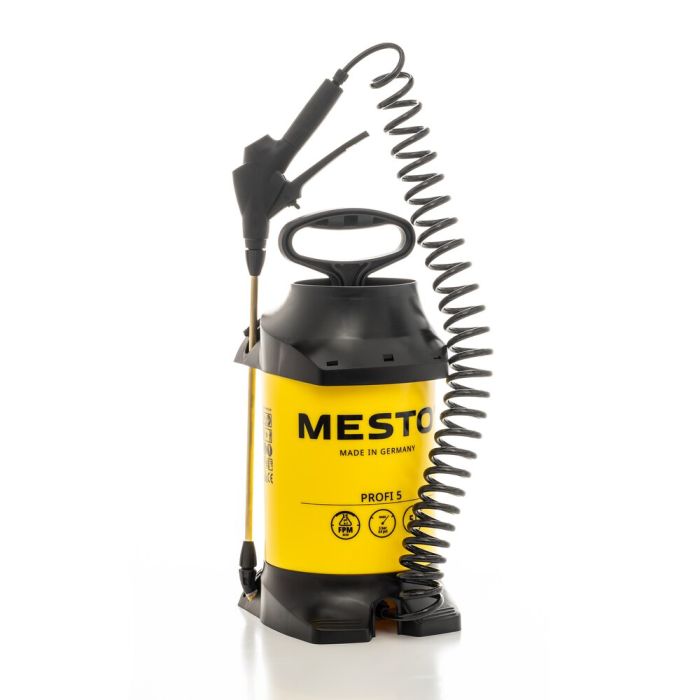

PROFI 5 compression sprayer
The plastic tank with a fill capacity of 5 l (total contents 8 l) is equipped with a base, which ensures that the tank has a sturdy foothold even with a low filling level or on an uneven surface; Additionally, the base protects the connection between the hose and the tank from damage. The 40 cm long, 360° rotatable brass spray wand features a brass hollow cone nozzle with a 1.1 mm orifice. The spiral hose, which can be extended to a length of 250 cm, is space saving and provides the user with a large radius of action. The ergonomic shut-off valve with integrated pressure gauge with indicator supports the environmentally friendly and economical use of agents and enables comfortable, fatigue-free work; the integrated, professional filter protects the nozzle against dirt. The integrated filling funnel for convenient filling of the device, spray wands and extension wands that can be stored optimally on the device and the piston pressure gauge with installed safety valve offer a comprehensive set of equipment for the 3275M model.
The use of high-quality FPM seals also makes it possible to use various, slightly acidic media.
Versatile accessories are available for the MESTO compression sprayer 3275M, such as extension wands, spray shields, transport trolley, compressed air filler valves, carrying strap and a funnel cover. The device can thus also be optionally carried comfortably on the back.
The robust MESTO 3275M is ideally suited for professional use.
The device includes a service voucher: In return for sending in the MESTO 3275M sprayer carriage paid together with this voucher and
the proof of purchase (not older than 24 months), you will receive a free service for your sprayer from MESTO
(function test and seals will be greased and replaced if necessary). Subsequently, we will send the device
back to you free of charge.
Ideal for: Plant care, weed control, flower care, liquid fertilizing
| Product class | Profi *** |
|---|---|
| Spraying agents | Fertilizer, Herbicides/Fungicides/Insecticides, Pelargonic acid, Water |
| EAN | 4000903327576 |
| Fill capacity | 5 l |
| Total contents | 8 l |
| Weight | 2,5 Kg |
| Hose length | 250 cm |
| Article type | Compression sprayer |
| Industry | House and garden, Gardening and landscaping, Forestry and agriculture, Fruit and wine growing |
| Applications | Wetting, Irrigating, Cooling, Strengthening plants, Controlling pests, Controlling weeds |
| Max. operating pressure | 3 bar/44 psi/0.3 MPa |
| Tank material | Plastic |
| Portability | on the side, Back, Carrying straps padded |
| Nozzle type | Spray nozzle, Hollow cone |
| Nozzle material | Plastic |
| Nozzle material | Plastic |
| Spray wand material | Plastic |
| Shut-off valve material | Plastic |
| Shut-off valve connection | for spiral hose D6 |
| Shut-off valve characteristics | with safety interlock, with filter, with pressure gauge |
| Hose diameter | D6 |
| Safety valve | replaceable |
| Pressure gauge | Piston pressure gauge |
| Compressed air filler valve | can be retrofitted |
| Scope of delivery general | tank, Pump, Hose, Instructions for use, Spray wand, shut-off valve, Elbow with nozzle, Carrying strap |
| additional equipment | Wall holder, Service voucher |
| Device equipment | Safety interlock on the shut-off valve prevents unintentional spraying., Extra large filler opening with integrated filling funnel for simple filling and emptying without any spillage., Base with foot ring for a sturdy foothold when pumping., Spray wand and extension wand holders for space-saving and safe storage., Carrying strap for carrying at the side over the shoulder., Embossed level scale to monitor the level at all times., ede51def-2f4b-48fa-b6c2-bb3852e24d11 |
Select the desired download.
| Type | Description | File extension | File size |
|---|
If you miss a download, please write us via our contact form.
Only trained, healthy and rested people may work with the device. You should not be under the influence of alcohol, drugs or medication.
Children and adolescents must not use the device. Keep the spraying devices safe from access to children.
Take precautions to prevent hazardous substances from being misused.
→ Accident risk!
Keep bystanders away during spraying.
Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.
→ Risk of injury!
Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances.
Avoid ignition sources in the environment.
Do not allow the device to remain under pressure and/or exposed directly to sunlight. Make certain the device is not heated beyond the maximum operating temperature. (→Table 1).
Protect the device from frost and ammonia.
Never blow through the nozzles or valves with your mouth.
→ Risk of poisoning!
There is a risk of slipping or tripping on smooth or wet surfaces, snow, ice, on slopes and on uneven terrain.
Repairs and modifications to the device are not permitted. Have damaged parts or parts that do not work properly repaired immediately by our customer service department or by service partners authorized by us.
The effect of the safety valve must not be bypassed or made inoperative.
→ Explosion hazard!
Use only original spare and accessory parts. We cannot assume any liability resulting from the use of third-party parts.
When pumping, always observe the pressure gauge to ensure the maximum
spraying pressure is not exceeded (→ Table 1).
All excess pressure must be released from the device before filling, after use, before carrying out maintenance work, on work breaks, and before placing it in storage.
Points to note when transporting the device: Transport the device in such a way that it is protected against damage and tipping. All excess pressure must be released from the device.
→ Explosion hazard!
If the device leaks at the container, immediately depressurise the device and put it out of operation!
→ Risk of explosion!
